Event Camera
Vision Cam EB

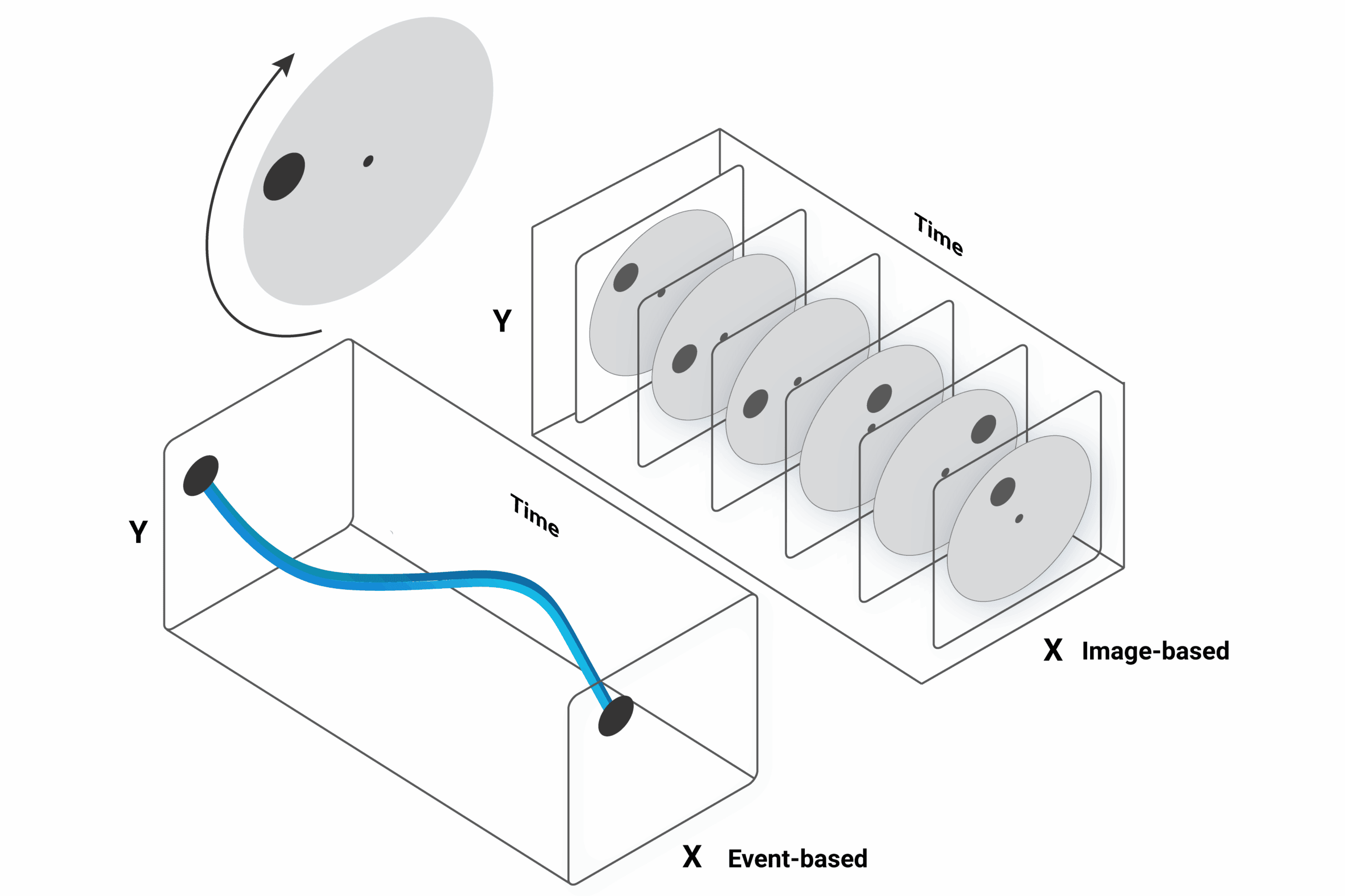

The Vision Cam EB from IMAGO Technologies is a compact embedded vision system with an innovative event based sensor. Instead of capturing full images at fixed frame rates, the event camera only registers relevant changes – exactly when light intensity changes at individual pixels.

This principle is based on the Prophesee Event-based Vision Sensor (EVS), modeled after human vision: relevant motion is detected, redundant image data is ignored.

The result is a system optimized for applications where speed, low data load, and extreme contrast conditions are critical. With its integrated ARM processor, industrial interfaces, and compact housing, the Vision Cam EB is easy to integrate into existing applications – without the need for a high-performance PC.

Capture of extremely fast motion

With up to 30 million events per second, the Vision Cam EB reliably captures highly dynamic processes in real time. No movement is lost between two frames – perfect for high-frequency tasks.

Reduced data load, full information

Instead of continuous frame capture, each pixel transmits an event only when relevant changes occur. This drastically reduces data volume, minimizing computing and memory requirements.

Wide dynamic range up to 120 dB

Even under extreme brightness differences, such as welding, the Vision Cam EB delivers usable results. The dynamic range clearly outperforms conventional CCD or CMOS sensors.

Microsecond-precise timestamps

All captured events are provided with exact timestamps – ideal for synchronized rejection systems or precise process monitoring.

Compact, industry-grade system design

With dimensions starting at 50 × 105 × 30 mm, the Event-based Camera fits easily into space-constrained installations. Interfaces such as Gigabit Ethernet, digital I/Os, and RS-232 simplify system integration.

Lower system costs through lean architecture

Thanks to the drastically reduced data load, a less powerful computing unit is sufficient. This lowers overall system costs – without loss of quality.

Fast start with ViewIT Framework

The ViewIT software environment enables rapid implementation of applications such as counting, vibration analysis, or motion tracking – without additional programming effort outside of image processing.

The Vision Cam EB unfolds its full potential where traditional image processing systems reach their limits – for example in high-speed, variable-light, or time-critical environments.

The Vision Cam EB is aimed primarily at OEMs, machine builders, and integrators who want to integrate fast and flexible image processing into their systems – without high hardware costs. It is particularly beneficial for users with requirements for high dynamics, real-time capability, and efficiency.

Typical application areas of event based cameras include production machines, inspection stations, transport solutions, and smart infrastructures – anywhere conventional cameras are no longer sufficient.
